Common Goulds Pump Models
Goulds WS Series Submersible Sewage Pumps 3886
- 2″ Solids handling capabilities
- Submersible Pump
- Stainless Steel Construction
- Discharge Size 2″ NPT
- Capacities up to 185 GPM
- Total Heads up to 38 Feet
- Dynamically Balanced Non-Clog Impeller
- Corrosion Resistant Stainless Steel Shaft
- Continuous Operation Design

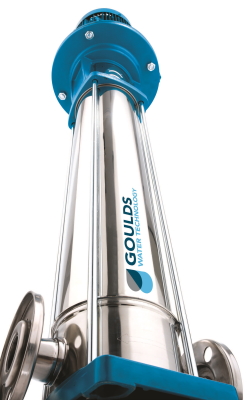

Goulds e-SV Series Stainless Steel Vertical Multi-Stage Pumps
- 11 models in the e-SV series
- Stainless Steel Construction
- Special configurations available
- Compatible with Goulds SSV Series vertical multi-stage pumps
- Shorter lead times possible with 5 manufacturing locations worldwide

Goulds e-SV Applications
- Water supply and pressure boosting
- Water Treatment
- Light Industry
- Farming and Irrigation
- Heating, Ventiliation, and Air-Conditioning
Specifications
- Flow up to 725 GPM
- Head up to 1200 feet
- 0.5 HP to 75 HP motors; ODP, TEFC and Explosion Proof with Premium Efficiency options; Insulation Class F
- Temperature: -22°F to 300°F liquids; Up to 580 PSI for sizes 1SV through 125SV
- Available with VFD Booster packages, including Hydrovar
Call Us: 614-649-3399
Goulds 1DW Submersible Dewatering Pump
- Discharge size: 1 1⁄2″ NPT
- Designed for Continuous Operation
- Impeller: AISI 304 SS open impeller
- Diffuser Plate: AISI 304 SS with Polyurethane coating for maximum resistance to abrasion.
- Casing: AISI 304 SS
- Shaft: AISI type 304 stainless steel high strength pump shaft with keyed and locking cap screw impeller fastening.
- Capacities: up to 110 GPM
- Total heads: up to 66 feet TDH
- Maximum solids: 3⁄8″ spherical
- Mechanical seal: Silicon carbide rotary/silicon
carbide stationary, 300 series stainless steel metal parts, BUNA-N elastomers. - Maximum submergence: 23′
- Temperature limit: 120°F (50°C) maximum
- Fasteners: 300 series stainless steel
- Single phase: 60 Hz, 3500 RPM, 1⁄2 HP, 115 and 230 V; 3⁄4 and 1 HP, 230 V only.
- Three phase: 60 Hz, 3500 RPM, 1⁄2 to 1 1⁄2 HP, 230 or 460 V
- Built-in thermal overload protection with automatic reset on single phase models
- Three phase: Overload protection must be provided in starter unit with three phase pumps

Goulds End-Suction Flanged Pumps G&L Series 3656/3756 M & L Group
- Residential, Commercial
- Cast Iron, Bronze Fitted
- Back pull-out to reduce maintenance down time
- Standard John Crane Type 21 mechanical seal for both reliability and availability. Carbon/ceramic/ BUNA standard, with other faces and elastomers available
- Available in all iron or bronze fitted construction for application versatility
- Replaceable wearing components include stainless steel shaft sleeve and casing and hub wear rings to maintain peak efficiency.
- Enclosed impeller design, dynamic balancing and renewable wear rings reduce losses affecting performance and pump life
- 125 lb. ANSI flange suction/discharge connections and casing rotation for piping connection versatility
- NPT threaded connections are supplied on 1 1/2 x 2 – 10 and 2 1/2 x 3 – 8 models
- Optional rigid carbon steel bedplate, sheet metal coupling guard and T. B. Woods spacer coupling for 3756 models
- Used for Booster Service, Spraying Systems, Irrigation, Water Circulation, Liquid Transfer, General Purpose Pumping
