ABRA POMPE of ITALY

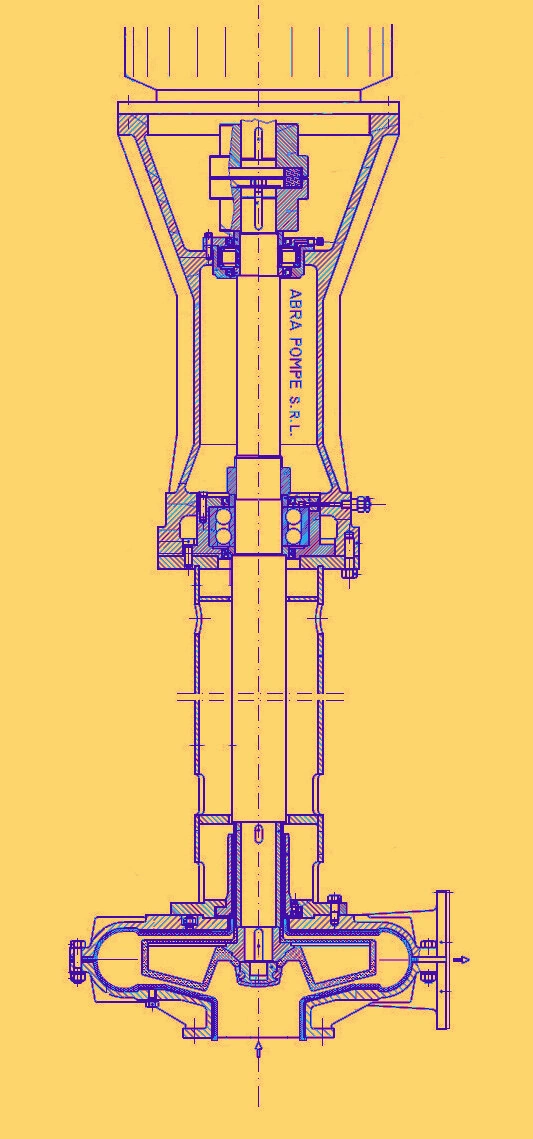

Abra Pompe Vertical Centrifugal Pumps

• For low depth pits
• Motor and bearings are easily accessible

Anti- Abrasive Pump

• Open blade Impeller, optionally rubber lined

Common Abra Pompe Models

• 30 VAP
• 40 VAP
• 50 VAP
• 50 VS1
• 60 VAP
• 60 VS1
• 60 VS2
• 80 VAP
• 80 VS1 (80 VS-1)
• 80 VS2 (80 VS-2)
• 100 VAP
• 100 VS1 (100 VS-1)
• 100 VS2 (100 VS-2)
• 150 VS2 (150 VS-2)
• 150 VS3 (150 VS-3)
• 175 VS3 (175 VS-3)

Flow and Head Capabilities

• Flow ranges from 1,320 GPH (5 m³/h) through 142,650 GPH (540 m³/h)
• Head ranges from 16.5 ft TDH (5 mH₂O) through 147 TDH (45 mH₂O)

Design Features

• Impeller: Chromium hardened steel, or rubber lined, open blade
• Level Probe regulation with min and max control holes
• Anti-abrasive pump lining – Removable or vulcanized, thick natural rubber
• Roof that protects motor
• Transmission: trapezoidal belts or coaxial joint
• For Lower Depth Pits
